The motor drives the reducer, and the reducer drives the eccentric wheel tomake the plunger reciprocate linearly in the pump body, and sequentiallyrealize the oil absorption and oil discharge process.

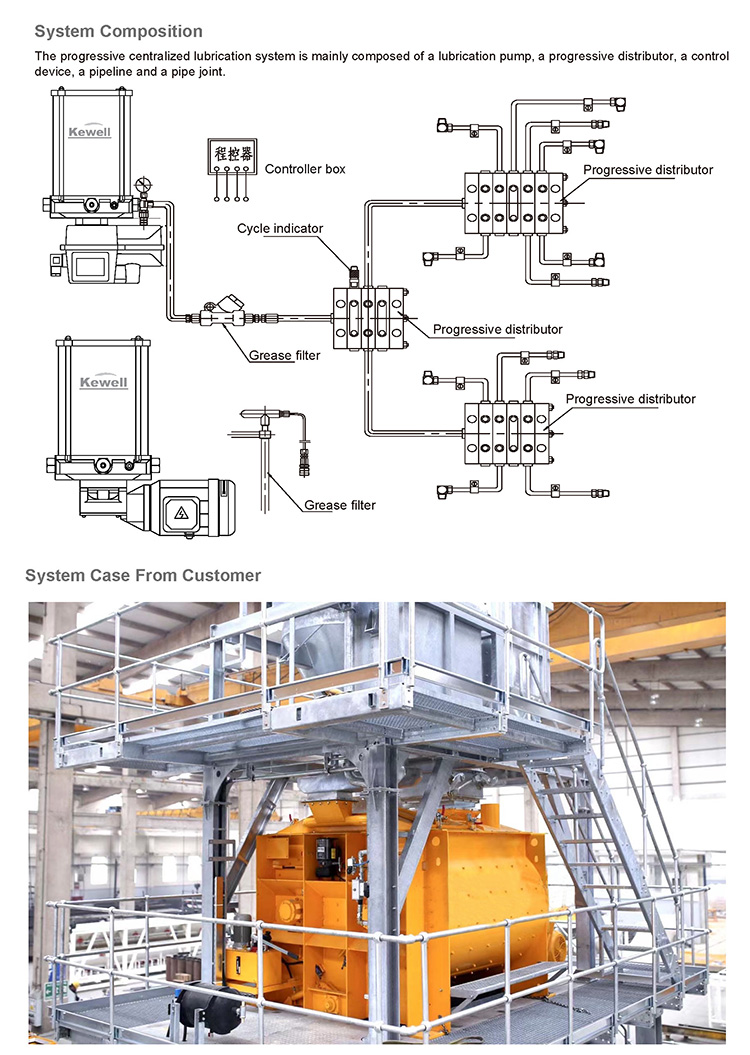

1. There are (1-5)independent pump units on the compact lubricator, canbe combined with the progressive distributor to form aprogressivegreaselubrication system to supply grease to lube points ,or lube the pointsdirectly,This is an economical way to save the cost and service expenses
2. The motor is fully sealed and has the advantages of water proof and dustproof.
3. The pressure is up to 25MPa, each outlet has a safety valve to preventthe pump unit from overloading.
4.Each outlet standard flow can choose :1.8cc /min , 5.5cc/min
(Option: You can assemble aseismatic pressure gauge to monitor the wholelubrication system) Standard flow for each outlet is optional :1.8cc/ min,5.5cc/ min,
5.Power input for different customer demand :220VAC/50Hz,380VAC/50Hz, or 24VDC.etc.(Option:can buit-in controller which can setting workingtime and down time.)
Provide power input according to different customer requirements: 220VAC/50Hz, 380VAC/ 50Hz or 24VDC.
6. Low level switch, can achieve low liquid level alarm (You can choose toinstall )
7. PCL control the cycle time: Running time and interval time (You canchoose to install )
8. A variety of volume tank selection, tanks have metal and plastictankselection.
9.A sealed plastic shell covers the main electrical elements, and providesgood protection to meet different rough condition.
